Cylindrical

GENERAL DATA OF THE GEARED-MOTORS WITH CYLINDRICAL TOOTHED WHEELS AND THE EXPLANATION HOW TO WORK WITH THEIR PROSPECT DATA

1). The “GEARED-MTORS, CYLINDRICAL” family includes three models of the reduction gears with the cylindrical toothed wheels with the analog kinematic diagram:

a) The model Geared-Motor Cylindrical (GMC) includes five sizes, which are classified according to the distance from the axis of the low speed shaft to the floor.

! The most important data for ordering this type of the geared-motor are as follows:

( 1) height to the axis of the low speed shaft: 160 – 200 – 250 – 315 or 400;

(2) gear ratio: 6,3 ? 100;

( 3) electrical motor type T 80 A-6; T 100 LA-4, etc.

! The approximate description of this type of the geared-motor with the axis height of the low speed shaft = 160 mm , the gear ratio i = 50 and the electrical motor T 80 B-4 is as follows: GMC 160-50 / T 80 B-4.

(b) the model “Geared-Motor Cylindrical Coaxial Modernized or Improved” GMCCM (GMCCI) 80 ? 200 includes five sizes classified according to the distance between the first and the second stage.

! The most important data for ordering this type of the geared-motor are as follows:

(1) the distance between the axes: 80 – 100 – 125 – 160 or 200;

(2) gear ratio: 8 – 9 – 10 – 11.2 – 12.5 – 14 – 16 – 18 – 20 – 22.4 – 25 – 28 or 31.5

(3) electrical motor type T 80 A-6; T 100 LA-4, etc.

! The approximate description of this type of the geared-motor with the distance between the axes = 80 mm, the gear ratio i = 31.5 and the electrical motor T 80 A-6 is as follows: GMCCI. 80 – 31.5 / T 80 A-6.

(c) the model Geared-Motor Cylindrical GMC (GMC 100, 132 and GMCI 160 – two-step) includes three sizes classified according to the distance from the axis of the low speed shaft to the floor and are manufactured in B3 and B5 variants.

! The most important data for ordering this type of the geared-motor are as follows:

(1) height to the axis of the low speed shaft: 100 – 132 or 160;

(2) gear ratio: 6.3 ? 45;

(3) electrical motor type: T 80 A-4; T 100 LA-4, etc.

(4) normal execution (on legs) or with a flange, B3 or B4 respectively.

! The approximate description of this type of the geared-motor two-step with the height of the axis of the slow running shaft = 160 mm, the gear ratio i = 20 and the electrical motor T 90 L-4 is as follows: GMCI 160-20 / T 90 L-4.

! For ordering the flange execution, the proximate description is as follows:

GMC 100-20 / MO 63 A-4 B5.

2). The firm reserves the right to change the construction of the geared-motor except changing the joining dimensions without notifying the clients.

3). The connection between the size of the geared-motor, electrical motor power, nominal frequency of the rotation of the low sped shaft, nominal gear ratio, torque moment of the low speed shaft and the weight of the geared-motor is given in Table 1.

(4) The overall and joining dimensions should correspond to the figures and tables given in:

! for GMC 160, GMC 200, GMC 250, GMC 315 and GMC 400: Fig. 1 and Table 2.1.

! for GMCCM and GMCCI: Fig. 2 and Table 2.2

! for GMC 100, GMC 132 and GMCI 160 – for normal execution B3: Fig. 3 and Table 2.3.

! for GMC 100, GMC 132 and GMCI 160 – for flange execution: Fig. 4 and Table 2.4

5) To order the geared-motors that you need please use the proximate descriptions given in p.a)., p.b) and in p.c)

GENERAL DATA OF THE “GEARED-MTORS, CYLINDRICAL”

Name of file
Size
Type
Download
925 kb
Word
96 kb
PDF



DIAGRAMS WITH THE JOINING DIMENSIONS

GMC 160. GMC 200, GMC 250, GMC 315 AND GMC 400 :

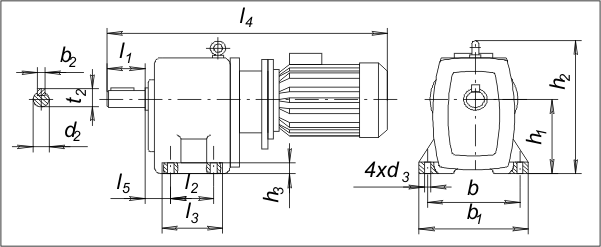

OVERALL AND JOINING DIMENSIONS OF GMC 160, GMC 200, GMC 250, GMC 315 AND GMC 400


Name of file
Size
Type
Download
194 kb
Word
74 kb
PDF





GMCCM 80, GMCCM 100, GMCCM 125, GMCCM 160 AND GMCCM 200






Name of file
Size
Type
Download
139 kb
Word
63 kb
PDF

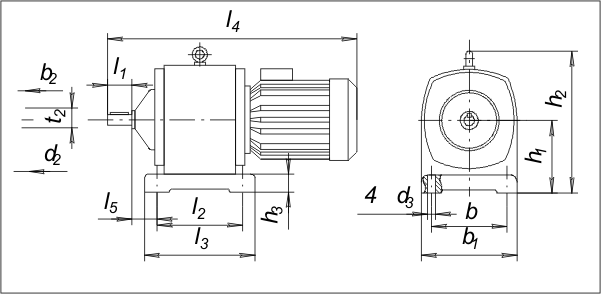

GMC 100, GMC 132 and GMCI 160 – B3 execution (without a flange)





Name of file
Size
Type
Download
186 kb
Word
84 kb
PDF

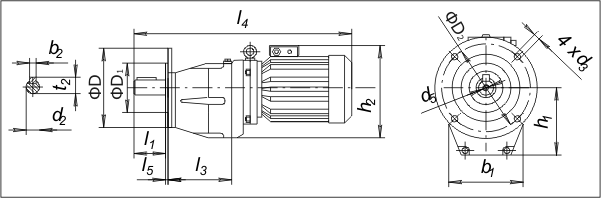

GMC 100, GMC 132 and GMCI 160 –B5 execution (with a flange)





Name of file
Size
Type
Download
191 kb
Word
92 kb
PDF
